 Post subject: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 8:26 am
Member
User avatar

Joined: Tue Mar 17, 2009 1:50 am
Posts: 398
Location: Sacramento, CA
The right channels of my inputs and outputs are failing. I've used different cables so I know it's not that. I can gently push down on my rca cables and the right audio comes in, but as soon as I let it go it's out again. Does anyone here have any experience with fixing this kind of problem?


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 2:00 pm
Member
User avatar

Joined: Sun Jan 04, 2009 9:43 pm
Posts: 7333
Location: France-Italy
i have still that problem too
never fixed, i move my habds aroud cables
one day i ask a techincien to fix that but he asked me 50€ just to "see" what the problem was....fuck him, istayed with the problem...
maybe is just a soldering matter...

_________________
http://illtrovatore.bandcamp.com/
Youtube
http://www.myspace.com/illtrovatore


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 4:51 pm
Member
User avatar

Joined: Tue Mar 17, 2009 1:50 am
Posts: 398
Location: Sacramento, CA
Damn..that's a lot of money just to open it up!


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 5:34 pm
Member

Joined: Wed May 21, 2008 12:48 pm
Posts: 166
Location: Ljubljana
Do you dare to open the machine to see if the spot where RCA's are connected to PCB is easily accsessable?
Your problem probably looks like this drawing.
It is easy fix but you need to buy or borrow (small) 15-25W soldering iron some solder and
still hand.
Attachment:
SP-F.JPG [ 11.98 KiB | Viewed 3886 times ]


PCB is usually drilled and RCA's have somekind of lips that are soldered trough this holes to PCB. Those lips also hold the connector in place and they can cause bad soldering point when you apply too much pressure for too many times.
I'd fix that for 1 cold beer.


Last edited by crumbsucker on Wed Mar 10, 2010 5:44 pm, edited 1 time in total.

Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 5:41 pm
Member
User avatar

Joined: Sun Jan 04, 2009 9:43 pm
Posts: 7333
Location: France-Italy
crumbsucker wrote:
Do you dare to open the machine to see if the spot where RCA's are connected to PCB is easily accsessable?
Your problem probably looks like this drawing.
It is easy fix but you need to buy or borrow (small) 15-25W soldering iron some solder and
still hand.
Attachment:


i got one solder like this i think, i will try to open the 303 later
thanx

_________________
http://illtrovatore.bandcamp.com/
Youtube
http://www.myspace.com/illtrovatore


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 5:45 pm
Member

Joined: Wed May 21, 2008 12:48 pm
Posts: 166
Location: Ljubljana
Can you make a macro photo of the spot?


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 5:50 pm
Member
User avatar

Joined: Tue Mar 17, 2009 1:50 am
Posts: 398
Location: Sacramento, CA
I might have to give this a shot as well. Hmm...what's the worst that can happen, I slip with the iron and fry the board? Thanks for the info, crumbsucker.


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 6:00 pm
Member
User avatar

Joined: Thu Jul 03, 2008 12:40 am
Posts: 237
Location: LA
The right output on my 303 does that... I have to push down to get it working. Finally got the cables in a position where it works, so I just try not to move it around too much. I did open it up but now seeing this diagram, I'm gonna crack it open again tonight.

_________________
http://soundcloud.com/speeps
http://truthseekersradio.org


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Wed Mar 10, 2010 7:27 pm
Member

Joined: Wed May 21, 2008 12:48 pm
Posts: 166
Location: Ljubljana
Chuck wrote:
I might have to give this a shot as well. Hmm...what's the worst that can happen, I slip with the iron and fry the board? Thanks for the info, crumbsucker.


You can fry some components if you hold soldering iron on one spot for too long but with 15W iron this is almost impossible.

You must take care that you don't apply too much solder on the spot because you can flood other tiny wires around the spot...
watch for excess solder ingeneral, and don't even try soldering over PCB if you don't have soldering iron with small tip (you can grind it with file to make it smaller)
Usually 15-25W irons got small enough tips.
If you don't have experience in soldering take some broken PCB and practice few minutes... so you see how things behave... how fast solder melts... Unsolder some resistors and solder them back... it is easy
It helps if you have some soldering paste or flux... sometimes it is present in the middle of soldering wire... it is yellow in most cases.
With the flux solder sticks way better.


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Thu Mar 11, 2010 1:50 am
Member
User avatar

Joined: Sun Jan 04, 2009 9:43 pm
Posts: 7333
Location: France-Italy

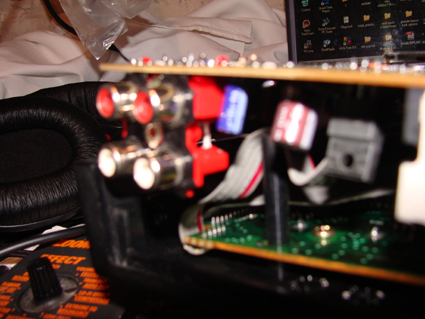

Attachment:
DSC01544.JPG [ 172.16 KiB | Viewed 3863 times ]

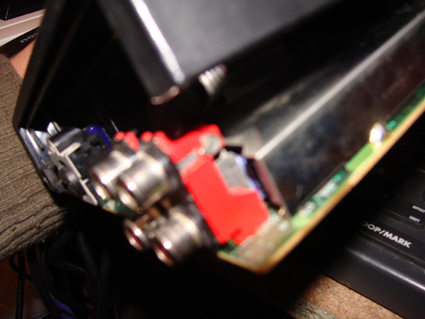

Attachment:
DSC01545.JPG [ 141.8 KiB | Viewed 3863 times ]

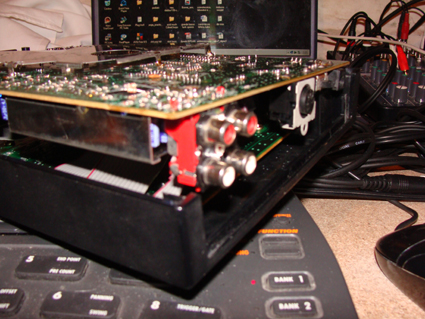

Attachment:
DSC01546.JPG [ 136.14 KiB | Viewed 3863 times ]

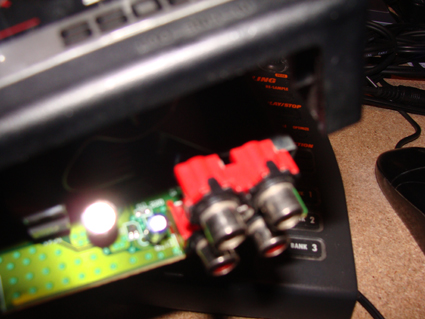

Attachment:
DSC01547.JPG [ 179.81 KiB | Viewed 3863 times ]

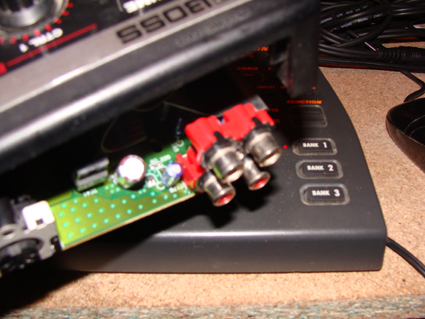

Attachment:
DSC01548.JPG [ 119.64 KiB | Viewed 3863 times ]

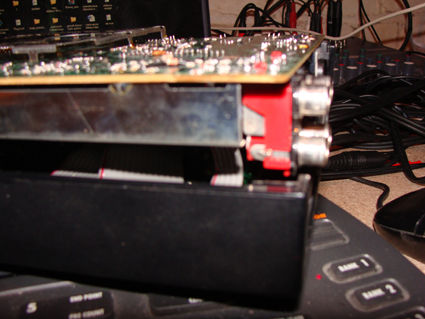

Attachment:
DSC01549.JPG [ 124.68 KiB | Viewed 3863 times ]
Attachment:
DSC01550.JPG [ 150.67 KiB | Viewed 3863 times ]
Attachment:
DSC01551.JPG [ 117.38 KiB | Viewed 3863 times ]

_________________
http://illtrovatore.bandcamp.com/
Youtube
http://www.myspace.com/illtrovatore


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Thu Mar 11, 2010 4:32 pm
Member
User avatar

Joined: Sun Dec 20, 2009 9:54 am
Posts: 339
Location: NRW
Hm you forgot to take one photo - the only one needed, a close-up of the RCA connectors' solder joints :)

Anyways, try moving the connector gently while looking at its large solder joints. If something moves there, the solder joint is broken - easy fix: just apply heat to the joints for a few seconds using the soldering iron. The solder will melt and close the gaps again. Maybe apply a little bit of fresh solder so you get a bit a flux into it so it flows better.

_________________
2x Vestax PDX 2000 + Denon DN-S1000 + Numark 5000FX


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Thu Mar 11, 2010 7:02 pm
Member
User avatar

Joined: Sun Jan 04, 2009 9:43 pm
Posts: 7333
Location: France-Italy
LoneStar wrote:
Hm you forgot to take one photo - the only one needed, a close-up of the RCA connectors' solder joints :)


could you see that on DSC01544.JPG and 1545 and 1546 pictures?
anyway it seems to me a "plastic" thing not a "Metallic" one...

LoneStar wrote:
Anyways, try moving the connector gently while looking at its large solder joints. If something moves there, the solder joint is broken - easy fix: just apply heat to the joints for a few seconds using the soldering iron. The solder will melt and close the gaps again. Maybe apply a little bit of fresh solder so you get a bit a flux into it so it flows better.


ok, this sounds not very difficult...
but fisrt i have to see if something moves...
thanx

_________________
http://illtrovatore.bandcamp.com/
Youtube
http://www.myspace.com/illtrovatore


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Thu Mar 11, 2010 7:05 pm
Member
User avatar

Joined: Tue Apr 28, 2009 6:51 pm
Posts: 466
Location: Holland
I'm a noob when it comes to these things, but can't you replace the RCA in and outs?

damn when i see those pics i don't wanna mess with it.

hope you can fix it!

_________________
SIMON DA PITCH SHIFTA


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Thu Mar 11, 2010 7:38 pm
Member
User avatar

Joined: Tue Mar 17, 2009 1:50 am
Posts: 398
Location: Sacramento, CA
E.Simon wrote:
I'm a noob when it comes to these things, but can't you replace the RCA in and outs?

Well, you have to do what crumbsucker explained in order to replace them. They more than likely don't need to be replaced, they're just not making a proper connection to the board if I understand correctly.

sigh...off to buy a soldering iron :?


Offline
 Profile
Top
 Post subject: Re: My rca inputs and outputs are fucked!
PostPosted: Thu Mar 11, 2010 7:38 pm
Member
User avatar

Joined: Sun Dec 20, 2009 9:54 am
Posts: 339
Location: NRW
ellaguru wrote:
could you see that on DSC01544.JPG and 1545 and 1546 pictures?
anyway it seems to me a "plastic" thing not a "Metallic" one...


No I couldn't see anything, they were taken from the side and not from the top, and really bloomed and unsharp to begin with.

Anyways this is what a broken solder join can look like:


As I said, in that case just heat it up for a second, done.

_________________
2x Vestax PDX 2000 + Denon DN-S1000 + Numark 5000FX


Offline
 Profile
Top
